Solis S6-EH3P125K-H 125kW Hybrid Inverter (250kW PV Input)

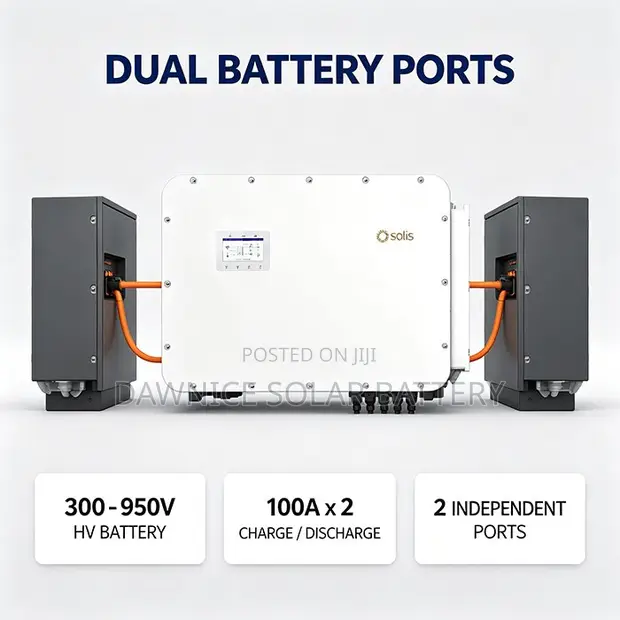

• Solis S6-EH3P125K-H 3-phase hybrid storage inverter for Commercial & Industrial (C&I) use. • AC Output: 125 kW/125 kVA, 380/400V, 50/60Hz, 189.9A max, PF >0.99, THDI <3%. • PV Input: 250 kW max (2x overload), 1000V max, MPPT 150-950V, 10 MPPTs, 20 strings. • Battery Compatibility: Li-ion 300-950V, 2 ports, 100A charge/discharge per port. • Backup Power: 125 kW continuous, with 1.4x/10s & 1.6x/200ms overload capability. <10ms switchover. • Efficiency: Max 97.5% (EU 97.2%). IP66 rated, operates from -25°C to +60°C. • Connectivity: 7-inch LCD, Wi-Fi, LAN, BT, RS485, CAN. Supports 6-unit parallel operation (~1.25 MW). • Warranty: 5-year manufacturer warranty included.
